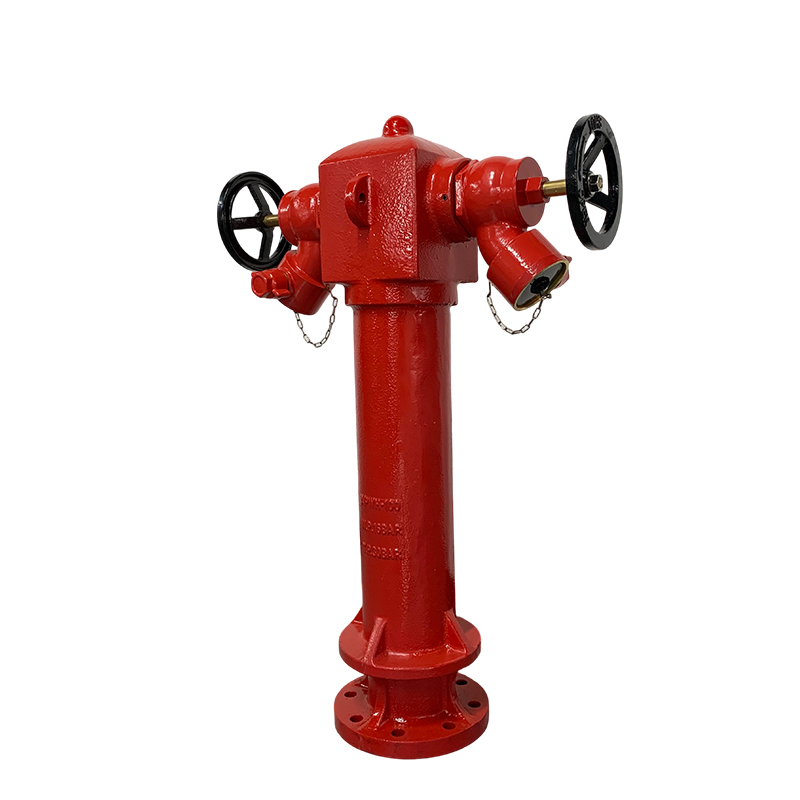

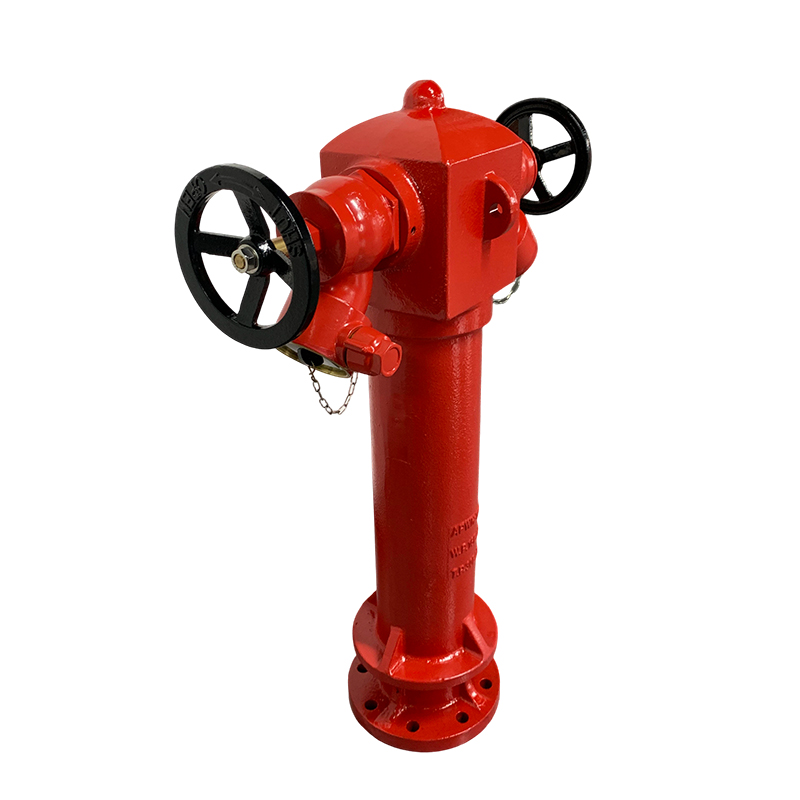

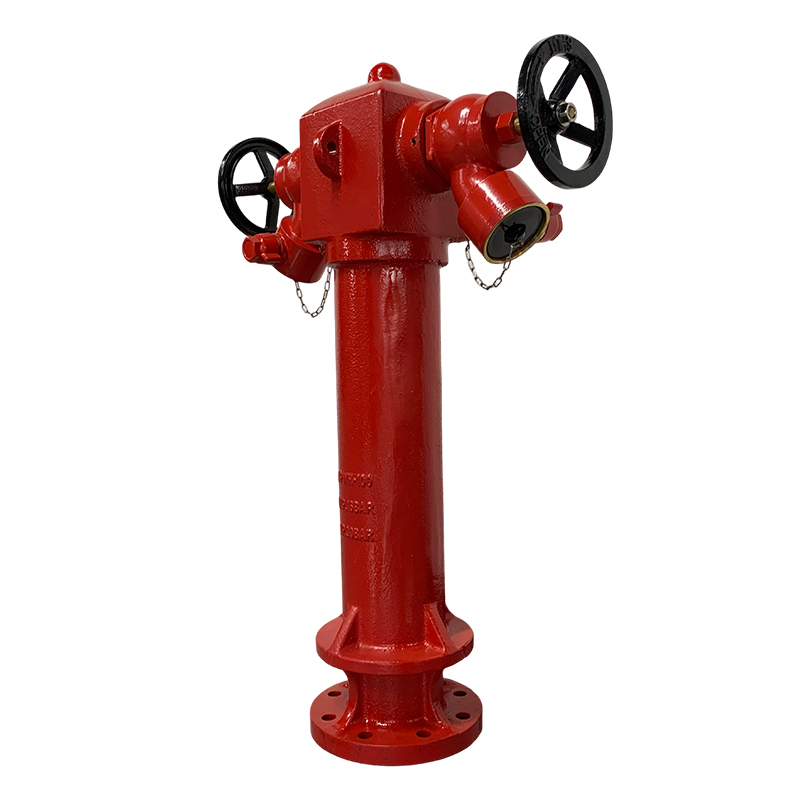

Two-Way Pillar Fire Hydrant Outdoor BS Standard 16 Bar

GM Product Brochure.pdf

Price on request

REQUEST NOW

Detailed description:

Two-Way Outdoor Pillar Fire Hydrant (BS Standard Compliance)

REQUEST PROJECT QUOTATION

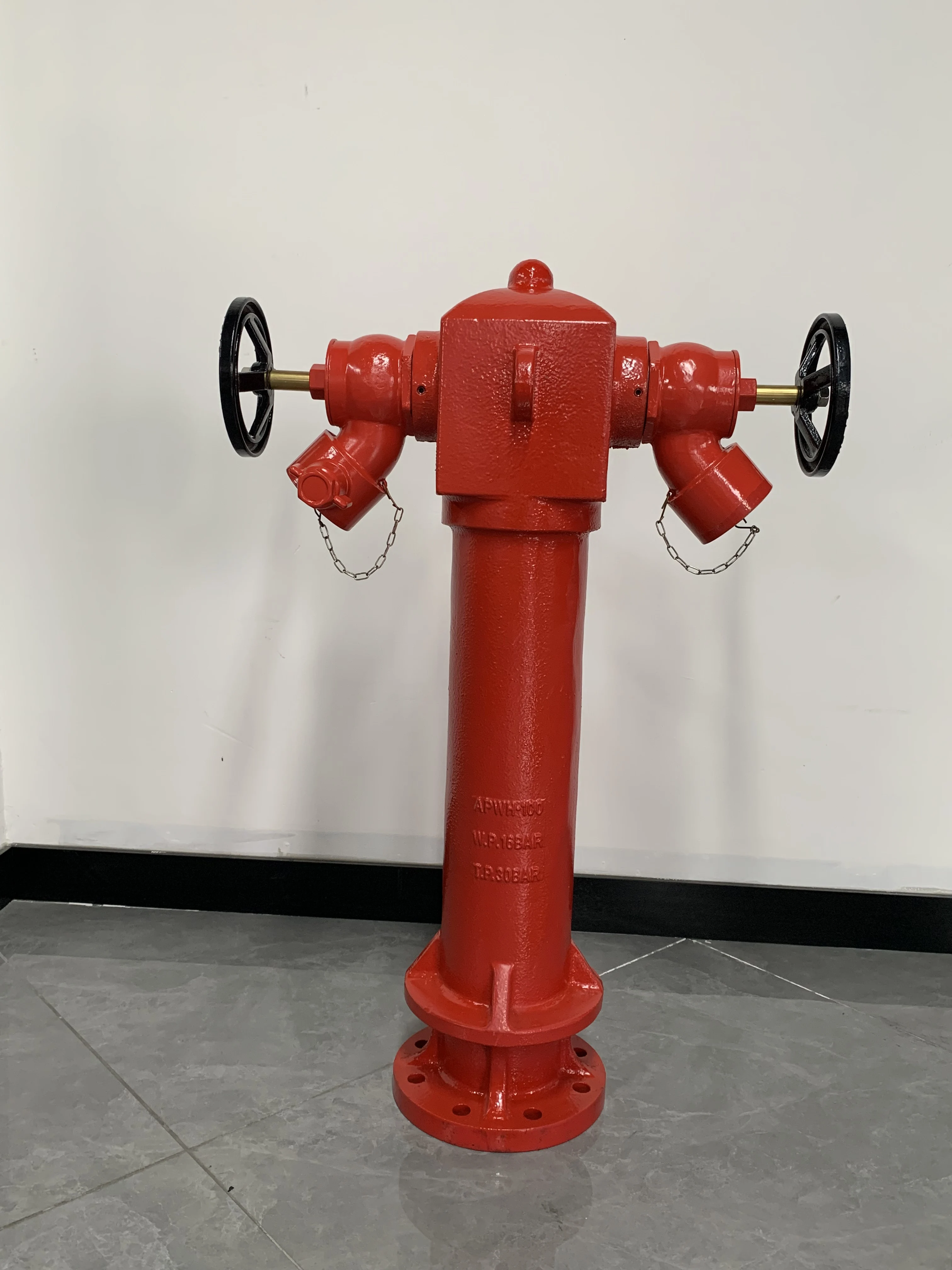

Two Way Pillar Fire Hydrant Outdoor 16 Bar Guangmin

Whatsapp: +86 18798746115

Email: jackbradd@guangminfire.cn

Working Pressure: 16 Bar (1.6 MPa)

Certified Industrial & Municipal Fire Protection Solutions.

Product Overview

The Two-Way Pillar Fire Hydrant is a critical component for outdoor municipal and industrial fire defense systems. Engineered for high-volume water delivery, it features two independent outlets equipped with high-quality control valves, allowing multiple fire hoses to be deployed simultaneously. Constructed from high-strength ductile iron, this hydrant is built to withstand extreme mechanical stress and environmental exposure. With a rated working pressure of 16 Bar and a rigorous test pressure of 30 Bar, it ensures operational reliability in high-rise infrastructure, refineries, and commercial zones following British and international fire standards.

Key Technical Advantages

Dual Outlet Design: Equipped with two 2.5" (65mm) landing valves for versatile firefighting response.
High Pressure Performance: Certified for 16 Bar working pressure, suitable for modern high-pressure fire mains.
Durable Ductile Iron Body: Provides superior impact resistance and long-term structural integrity compared to grey iron.
Corrosion Protection: Internal and external epoxy powder coating (FBE) prevents rust and ensures high visibility.
Ease of Maintenance: Threaded components and standard flanged base allow for rapid installation and servicing.

Technical Specifications

Parameter	Specification Details
Type	Two-Way Pillar (Wet Barrel / Dry Barrel Optional)
Working Pressure (W.P.)	16 Bar (1.6 MPa)
Test Pressure (T.P.)	30 Bar (3.0 MPa)
Body Material	Ductile Iron (ASTM A536 / BS Standard)
Inlet Connection	DN100 (4") or DN150 (6") Flanged
Outlet Valves	2 x 2.5" (65mm) BS336 or Threaded Valves

Primary Applications

Municipal Infrastructure: Standard fire safety points in urban centers and public squares.
Industrial Facilities: Refineries, chemical plants, and manufacturing zones requiring high-volume water supply.
Commercial Developments: Outdoor fire defense for shopping malls, hotels, and office complexes.
Port & Marine Safety: Corrosion-resistant hydrant points for docks and shipping terminals.

Global Project Support: We offer customized flange drillings (ANSI, DIN, BS), various outlet valve standards (Storz, Nakajima, Machino), and customized body lengths to suit specific underground piping depths.
