Detailed description:

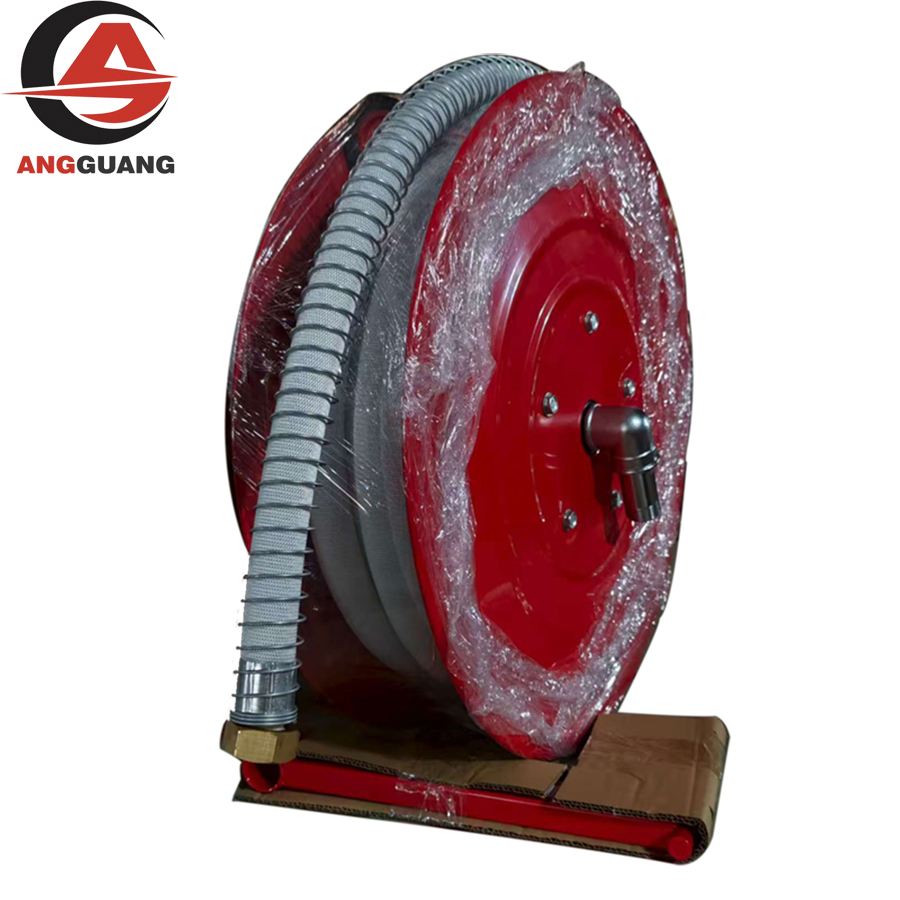

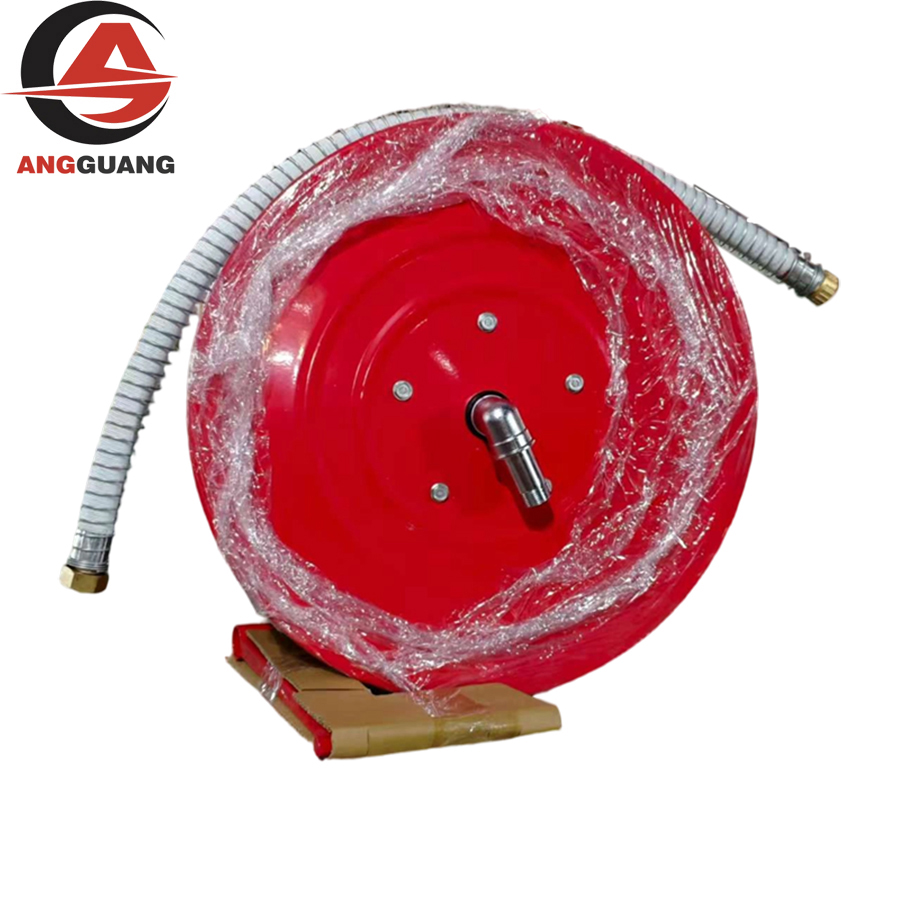

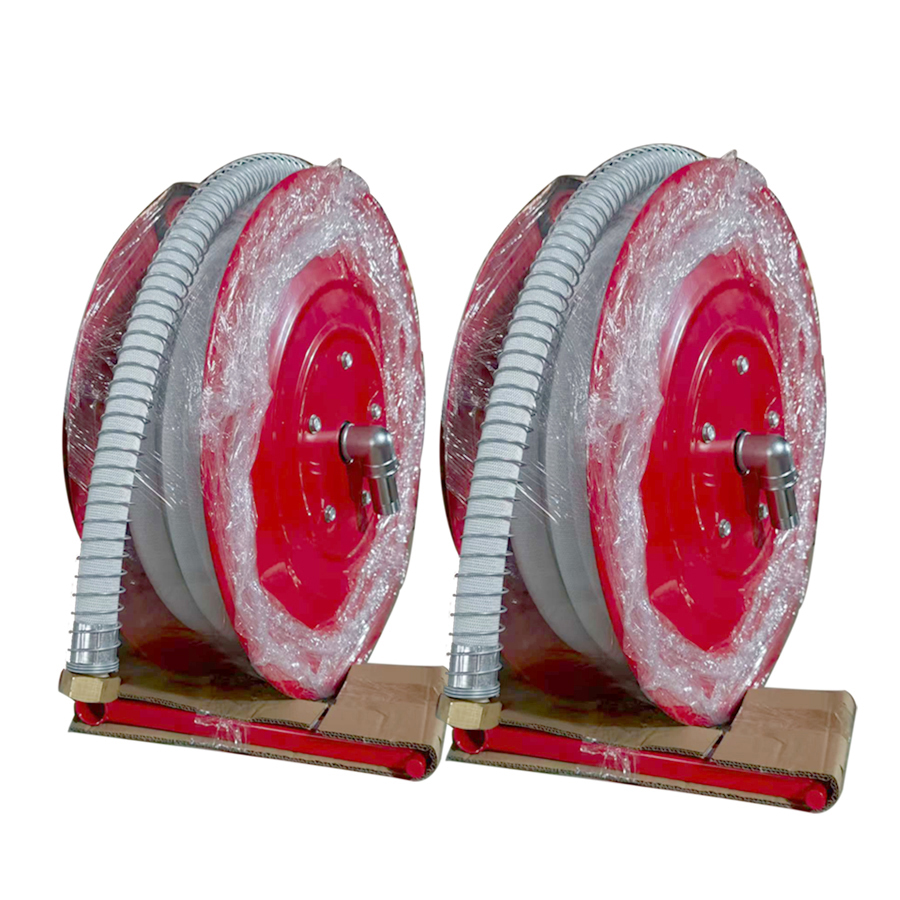

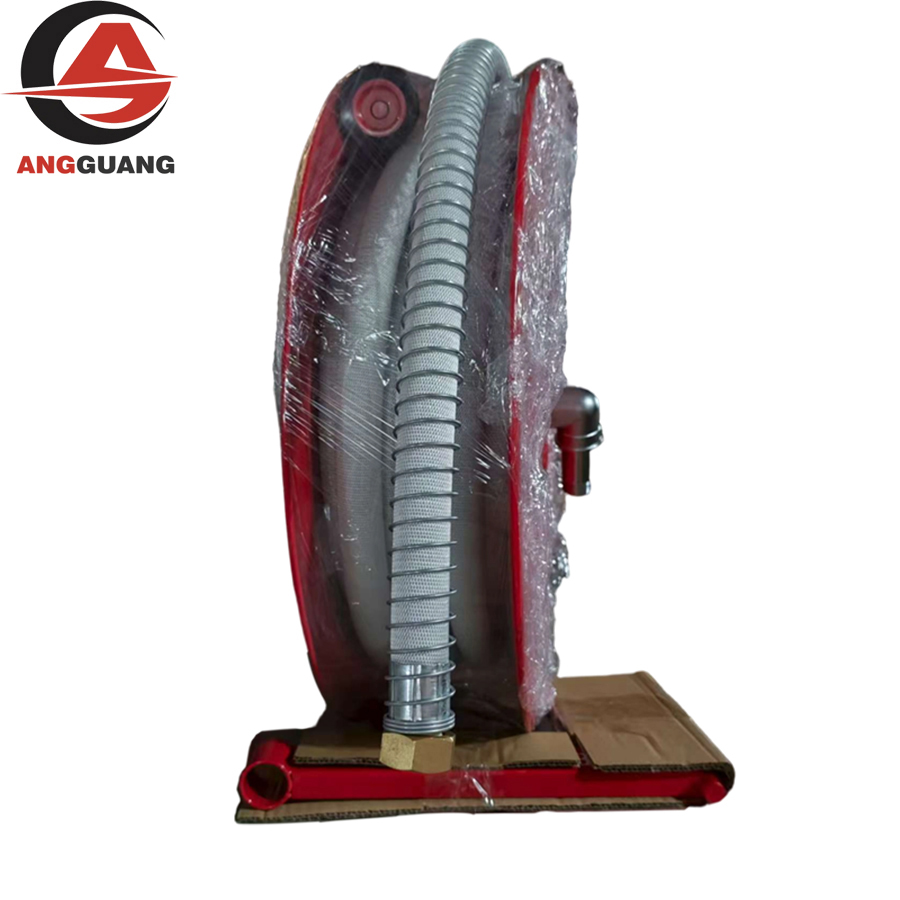

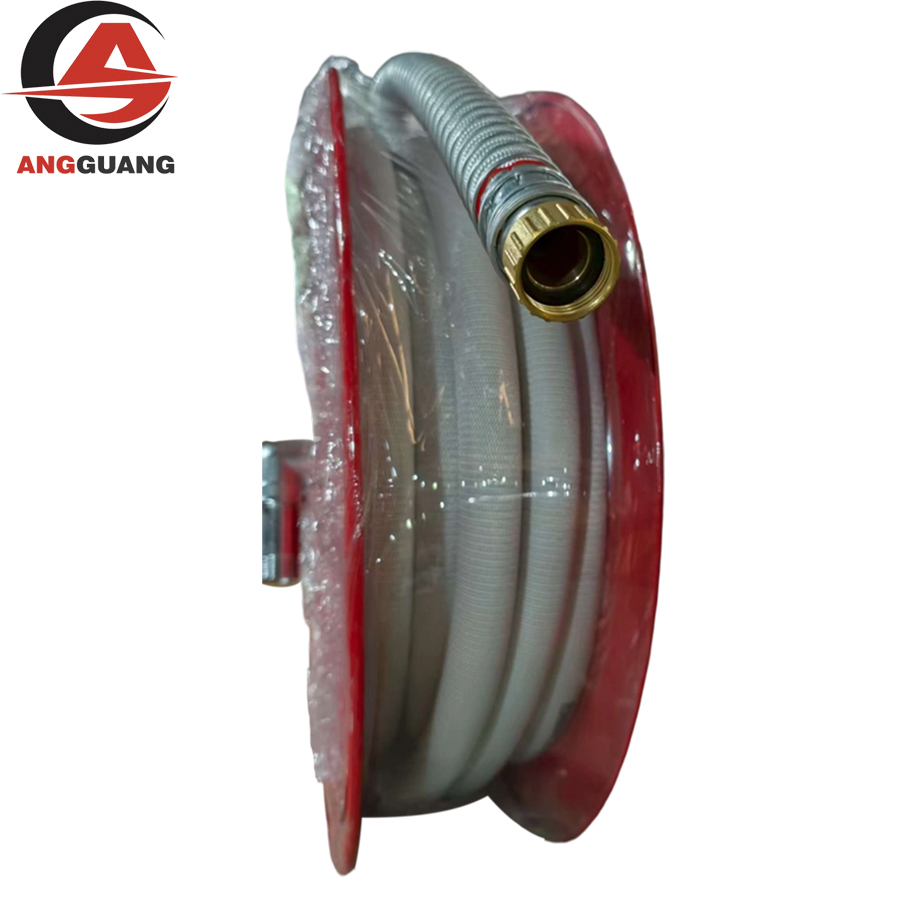

Manual Swing Fire Hose Reel DN25 (1 Inch) for Industrial & Commercial Use

REQUEST A QUOTE & CATALOG

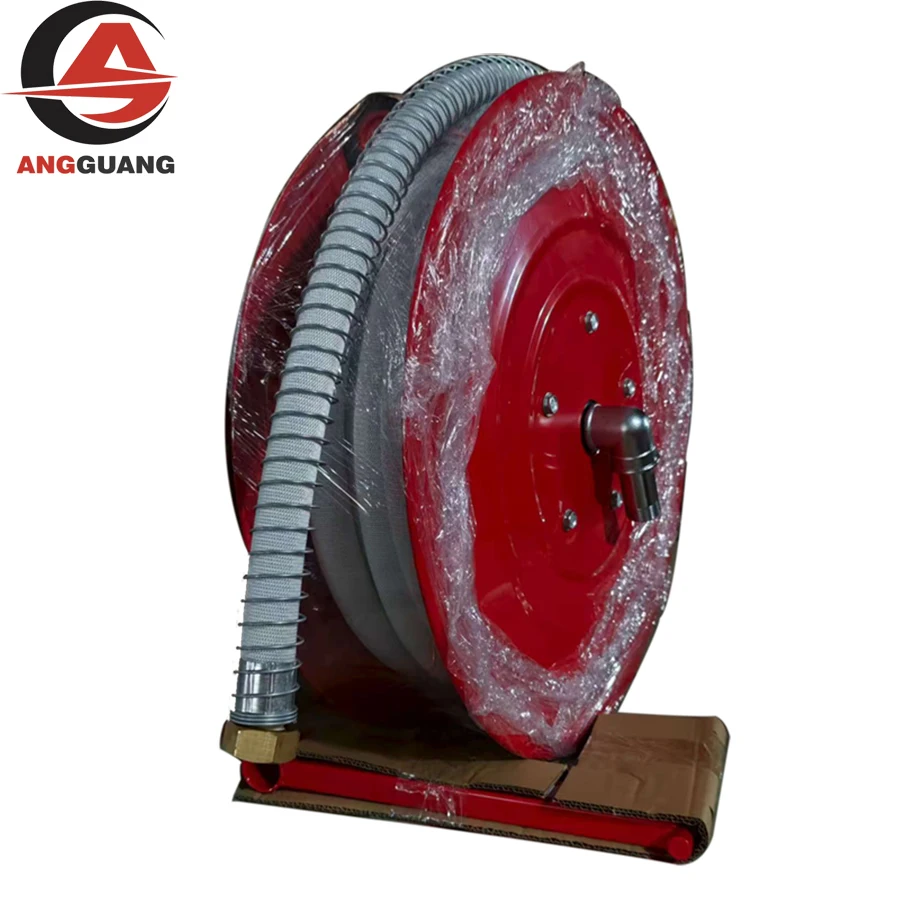

Manual Swing Fire Hose Reel DN25 1 Inch Guangmin

Whatsapp: +86 18798746115

Email: jackbradd@guangminfire.cn

Compliance: EN 671 Standard (European Norm)

Professional Firefighting Equipment Manufacturer Since 1995.

Product Overview

The Manual Swing Fire Hose Reel (DN25) is a highly reliable fire suppression tool designed for rapid response in commercial, residential, and industrial environments. This reel is engineered to provide a continuous and controlled supply of water through its 30-meter high-pressure hose, even while the hose is still being unwound. Featuring a robust swing-type mounting bracket, it can be easily rotated to the direction of the fire, ensuring maximum tactical flexibility. Built with a high-strength steel drum and finished in fire-red epoxy powder coating, it is fully compliant with EN671 standards, making it a staple for fire safety audits globally.

Key Technical Advantages

EN671 Compliance: Fully tested and certified according to European standards for manual fire hose reels.
180° Swing Action: The manual swing arm allows for easy deployment from wall-mounted positions, reaching any angle effortlessly.
Durable Steel Construction: Drum made from high-quality cold-rolled steel with a corrosion-resistant epoxy finish.
High-Pressure Hose: Reinforced 25mm (1 inch) PVC or synthetic hose designed to withstand working pressures up to 1.2 MPa.
Adjustable Nozzle: Equipped with a precision jet/spray nozzle for customizable fire suppression tactics.

Premium Semi-Rigid Hose: The reel is equipped with a high-performance 25mm (DN25) semi-rigid fire hose compliant with EN 694. Unlike flat fire hoses, our semi-rigid hose maintains its round shape under pressure, ensuring an immediate and continuous water supply the moment the nozzle is opened, even if the hose is not fully unrolled.

Technical Specifications

Parameter	Specification Details
Inlet Diameter	DN25 (1 Inch)
Hose Length	30 Meters (Customizable 20m/25m)
Mounting Type	Manual Swing / Wall Mounted
Working Pressure	1.2 MPa (12 Bar)
Test Pressure	1.8 MPa (18 Bar)
Standard	EN671-1 / LPCB Approved Options

Primary Applications

Commercial Buildings: Office towers, shopping malls, and hotels for building code compliance.
Industrial Facilities: Manufacturing plants, chemical storage, and maintenance workshops.
Education & Healthcare: Schools and hospitals where rapid, intuitive firefighting is required.
Logistics Centers: Large-scale warehouses and distribution hubs for zone protection.

Global Distribution: We provide full OEM support, customized hose colors/lengths, and bulk shipping options for fire safety contractors and project engineers.
