Product Overview

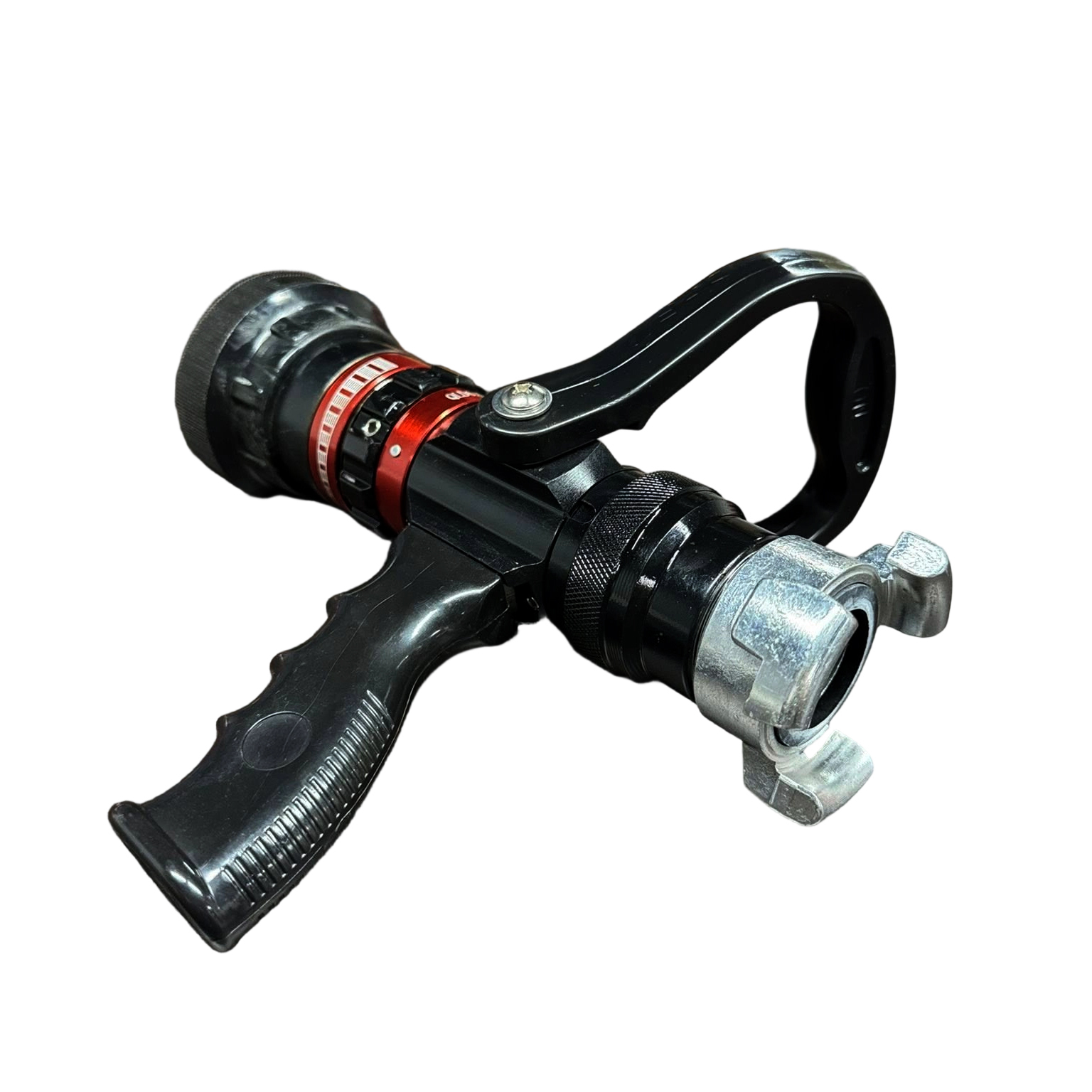

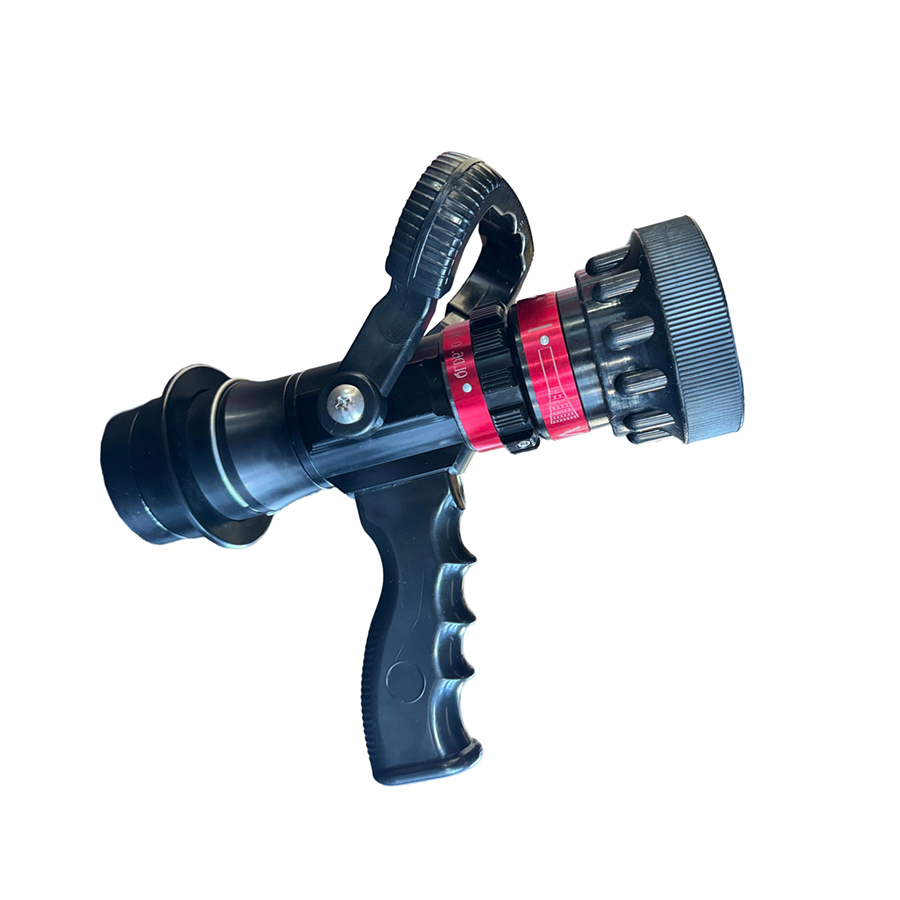

Our Pistol Grip Fire Nozzle is a high-performance firefighting tool designed for maximum control and versatility. It features an ergonomic handle and a selectable gallonage ring, allowing firefighters to adjust water flow and spray patterns on the fly. The most significant advantage is the replaceable coupling system, making it compatible with any global hose standard.

Key Features

Selectable Flow Rates: Easily adjust water flow (115-230-360-475 LPM) via the calibrated red ring.
Ergonomic Pistol Grip: Reduces operator fatigue and provides superior nozzle control.
Replaceable Couplings: Inlet can be swapped to match Storz, Machino, NH, or British Instantaneous standards.
Adjustable Patterns: Smoothly switch from a Straight Stream (Jet) to a wide Fog/Spray pattern.
Durable Construction: Hard-anodized aluminum alloy and heavy-duty rubber protection.

Technical Specifications

Parameter	Details
Material	Hard-Anodized Aluminum Alloy + Rubber
Flow Rates	Selectable (Up to 475 LPM / 125 GPM)
Working Pressure	6 Bar - 7 Bar (Standard)
Inlet Coupling	Replaceable (Customizable to Storz, Machino, etc.)
Valve Type	Stainless Steel Ball Valve with Handle

Applications

Municipal Firefighting: Primary attack nozzle for urban fire brigades.
Industrial Plants: Protection for refineries, warehouses, and power stations.
Marine & Offshore: Saltwater-resistant versions for shipboard fire safety.

[Customized Solutions] At Guangmin Fire, we specialize in tailoring fire nozzles to your specific region's needs:

Universal Inlet: We provide various interchangeable couplings to ensure 100% compatibility with your existing hoses.
Custom Branding: We can laser-engrave your Brand Logo or Serial Numbers on the nozzle body.
Color Options: Available in standard Black/Red finish, or customized colors for bulk orders.

Special Feature: 100% Interchangeable Inlet Couplings to suit your local standards.
