30+ Years Manufacturing, Factory Direct Price, This hose is perfectly compatible with our range of fire nozzles and landing valves.



Product Overview

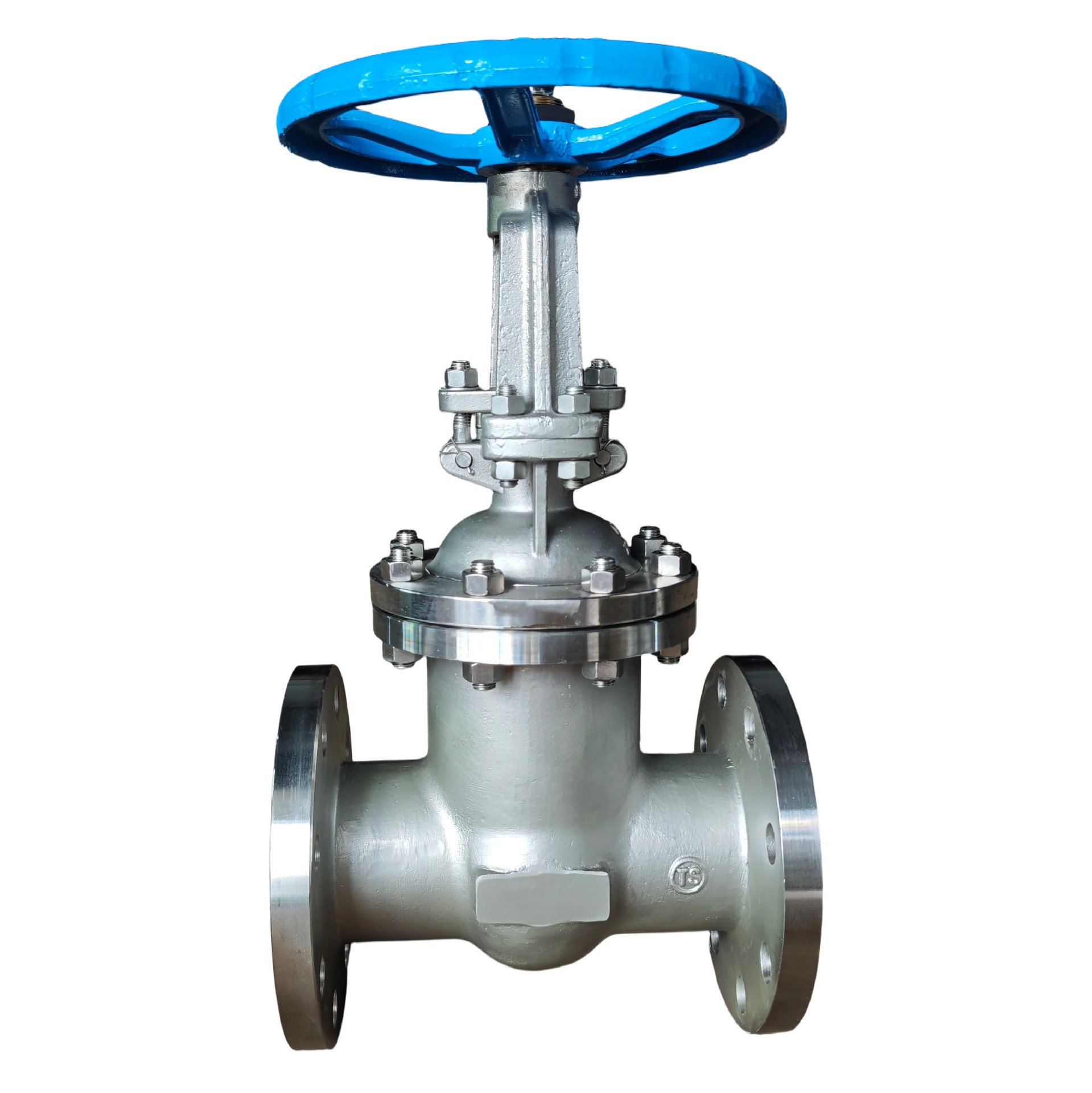

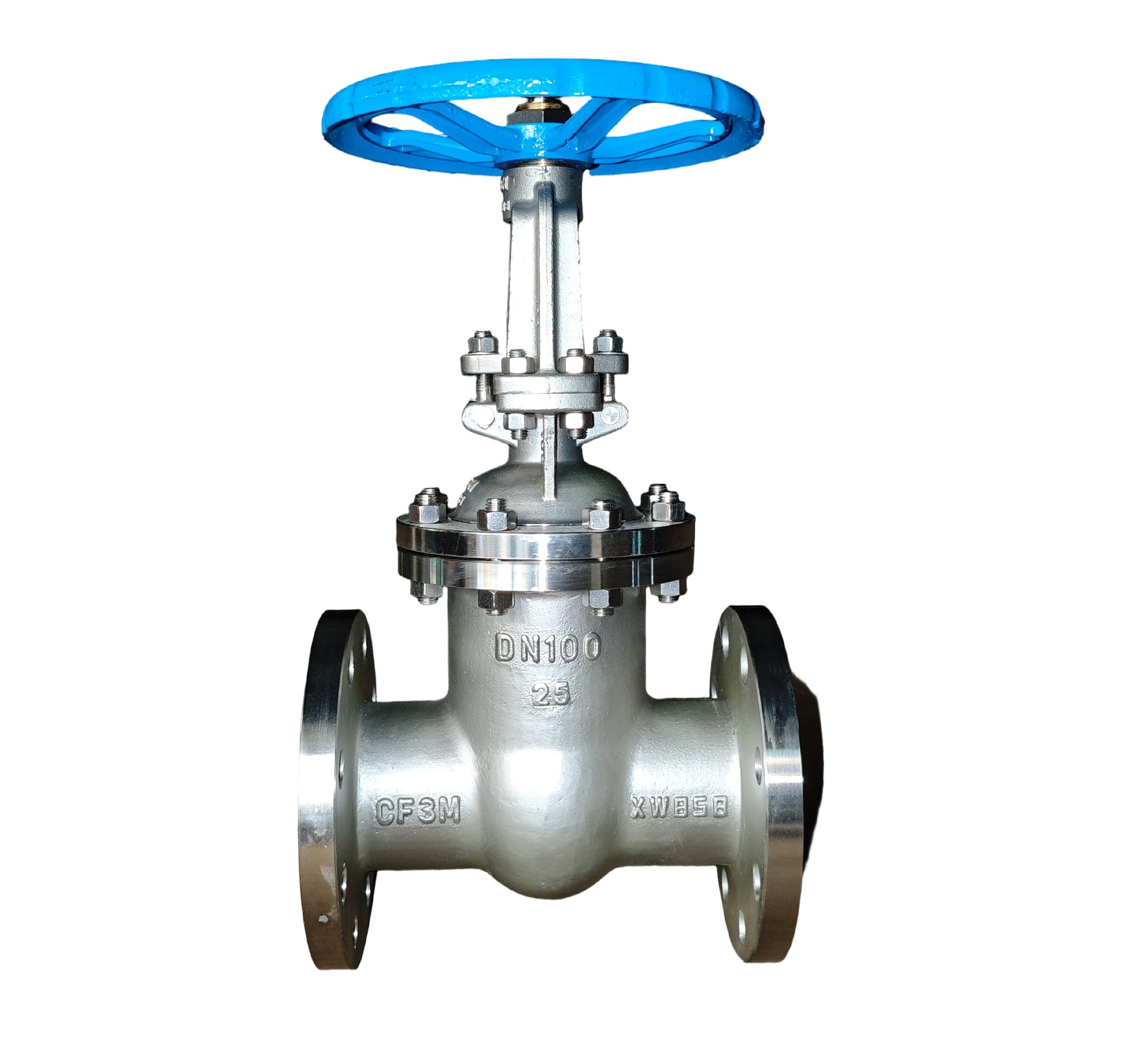

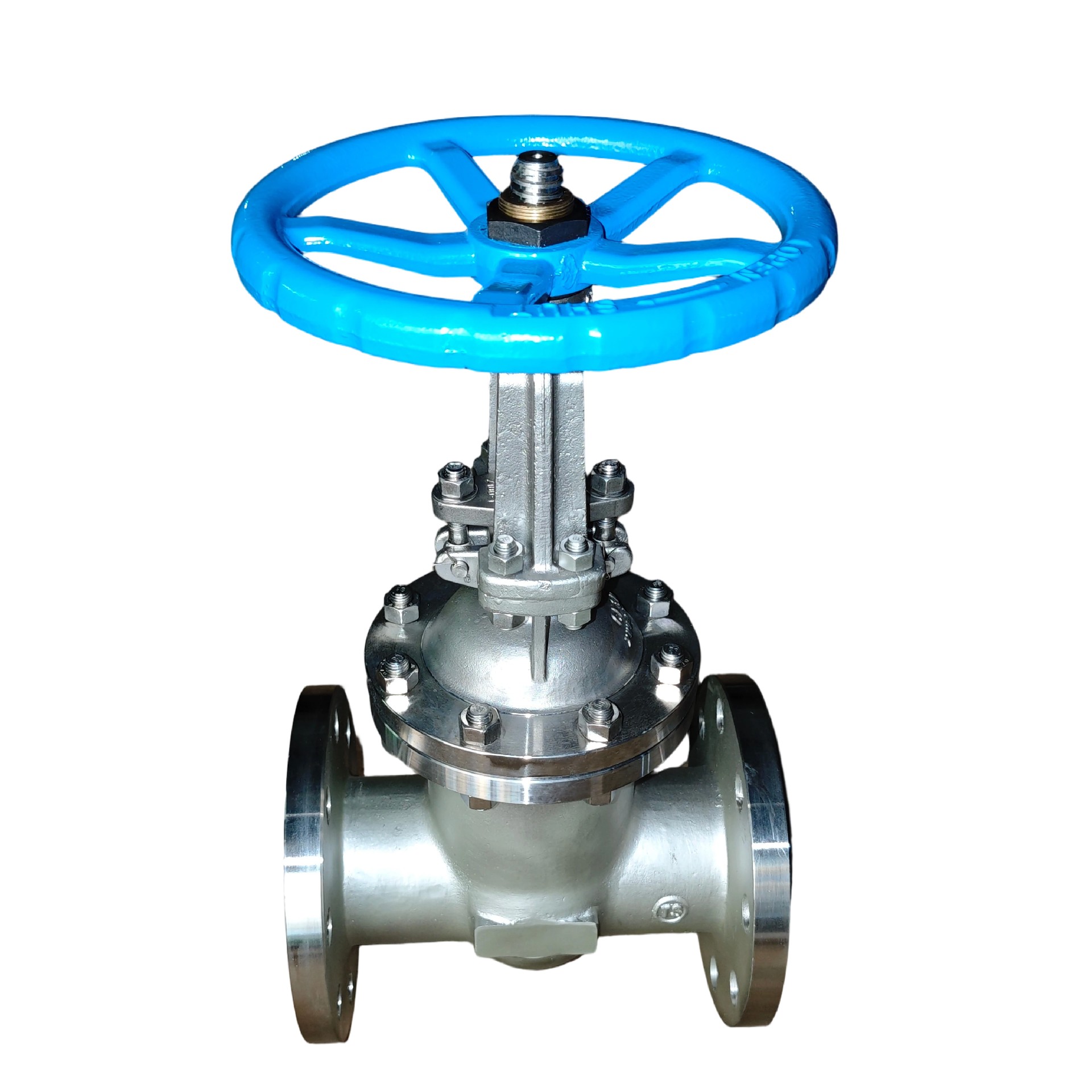

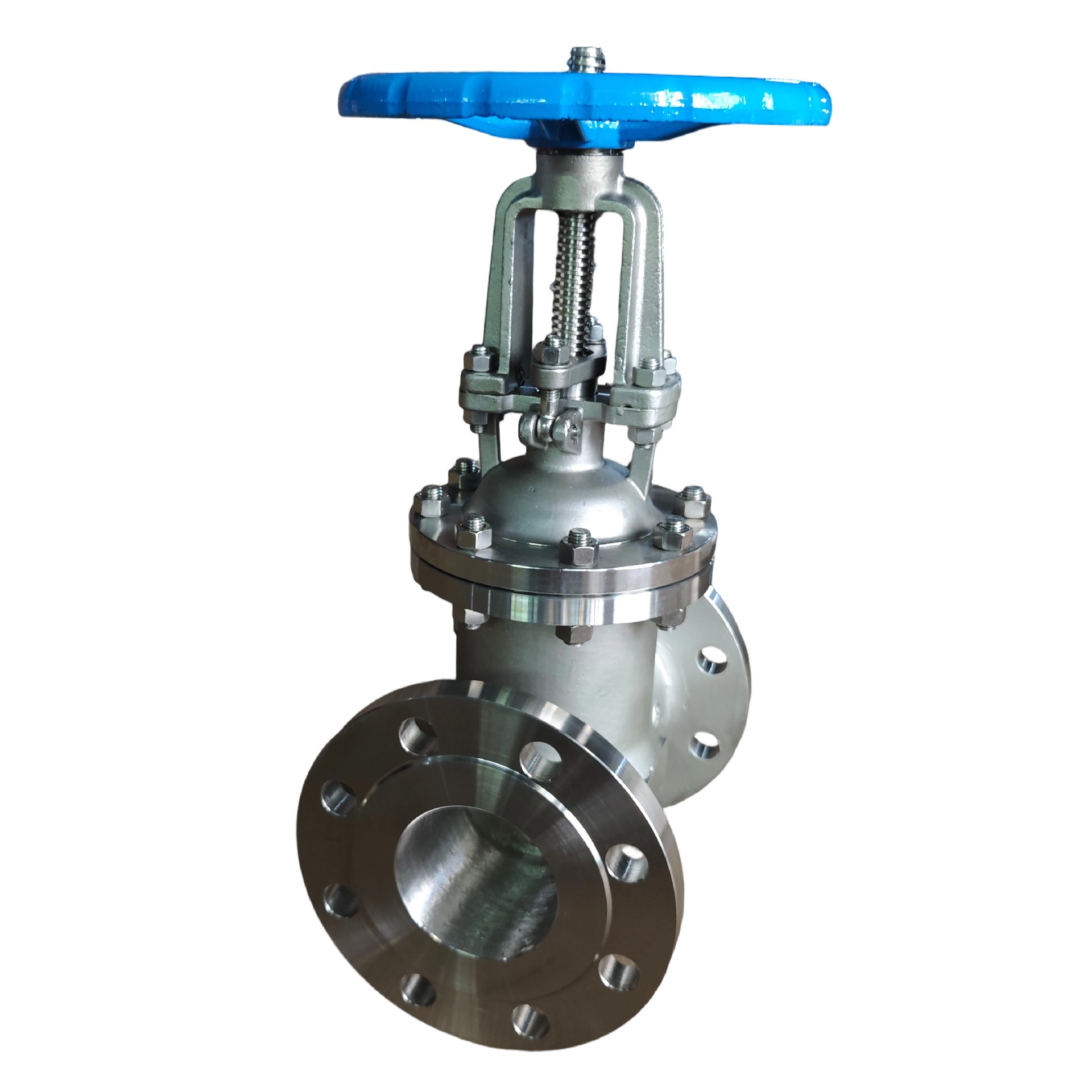

Our CF3M Stainless Steel Gate Valve is designed for high-performance fluid control in demanding environments.

Made from premium CF3M (the casting equivalent of 316L Stainless Steel), this valve offers exceptional

resistance to pitting and crevice corrosion, particularly in chloride environments. The DN100 PN25

design ensures a robust solution for medium-to-high pressure industrial piping systems.


Key Features


  • Superior Corrosion Resistance: CF3M (316L) construction provides maximum durability against harsh chemicals and saltwater.

  • Full Port Design: Straight-through flow path minimizes turbulence and pressure drop.

  • Rising Stem Construction: Clear visual indication of valve position (open/closed) for operational safety.

  • Precision Sealing: High-quality wedge and seat design ensure a tight, leak-proof shut-off.

  • Industrial Standard: Complies with international flange standards (DIN/EN/ASME) for easy installation.

  • Durable Handwheel: Ergonomic blue-coated handwheel for smooth and reliable manual operation.


Technical Specifications



ItemDetails
MaterialASTM A351 CF3M (316L Stainless Steel)
Valve TypeWedge Gate Valve, Rising Stem
Nominal DiameterDN100 (4 Inch)
Nominal PressurePN25 (2.5 MPa)
Connection TypeFlanged End
Operating Temperature-29°C to +425°C
MediaWater, Oil, Gas, Chemical, Corrosive Liquids



Applications


  • Chemical & Petrochemical: Handling corrosive chemicals and acid-based liquids.

  • Marine & Offshore: Saltwater cooling systems and offshore platform piping.

  • Water Treatment: Desalination plants and wastewater management systems.

  • Food & Pharmaceutical: High-purity fluid control (due to 316L's hygiene properties).

  • Oil & Gas: Upstream and downstream transport of natural gas and petroleum.
