2.5" Red Oblique Fire Landing Valve with Threaded Inlet | Guangmin

GM Product Brochure.pdf

Price on request

REQUEST NOW

Detailed description:

2.5 Inch Red Threaded Inlet Oblique Fire Hydrant Landing Valve

CONTACT US

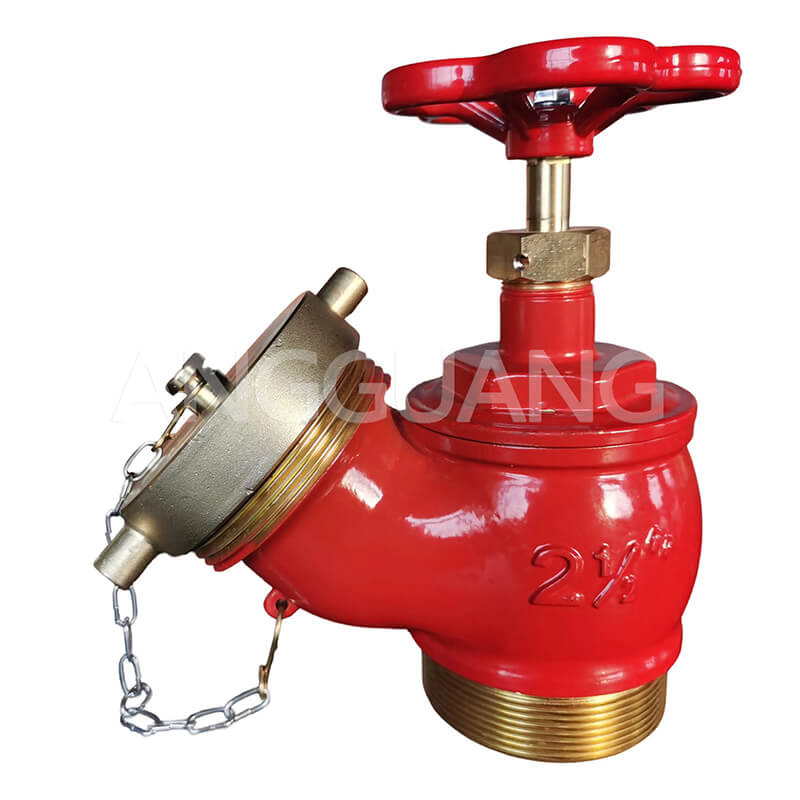

Guangmin 2.5 Inch Red Oblique Landing Valve with Threaded Inlet and Brass Blank Cap.jpg

Whatsapp：+86 18798746115

Email：jackbradd@guangminfire.cn

Factory Direct | Reliable Threaded Inlet | OEM Services

High-Performance Firefighting Equipment for Building Safety.

Product Overview

The 2.5" Red Threaded Oblique Landing Valve is a key terminal for indoor wet riser firefighting systems. Designed with a convenient threaded inlet (BSP or NST), it allows for straightforward installation onto fixed fire pipelines. The valve combines a high-strength ductile iron body with a corrosion-resistant **brass instantaneous outlet**, ensuring long-term reliability and rapid hose deployment in emergency situations.

Key Features

Secure Threaded Inlet: Available in BSP or NST threads to ensure compatibility with local pipeline standards.
Durable Coating: Professional red epoxy powder finish protects against rust and environmental wear.
Brass Coupling & Cap: High-quality brass components provide superior sealing and corrosion resistance.
Ergonomic Handwheel: Sturdy red handwheel designed for smooth manual operation even under high water pressure.
Oblique Pattern: Slanted design facilitates easy hose connection in tight spaces like fire cabinets.

Technical Specifications

Parameter	Details
Nominal Diameter	2.5 Inch / 65mm / DN65
Inlet Connection	Threaded (BSP / NPT / NST Customizable)
Outlet Connection	2.5" Female Instantaneous (BS 336)
Body Material	Ductile Iron with Red Epoxy Coating
Working Pressure	15 Bar - 16 Bar (1.6 MPa)
Components	Brass Blank Cap and Durable Chain Included

Applications

Residential Buildings: Standard fire safety terminal for apartments and hotels.
Warehouses & Factories: Reliable water control for industrial wet riser systems.
Commercial Centers: Used in shopping malls, office towers, and transit hubs.
Marine Safety: Suitable for specific maritime fire control stations.

Custom Service: We offer customizable inlet thread types, private logo stenciling on the valve body, and different handwheel material options.
