Pistol Grip Selectable Gallonage Fire Nozzle | Multi-Functional | Guangmin

GM Product Brochure.pdf

Price on request

REQUEST NOW

Detailed description:

Selectable Gallonage Fire Nozzle with Ergonomic Pistol Grip

CONTACT US

Pistol Grip Selectable Gallonage Fire Nozzle Guangmin

Whatsapp：+86 18798746115

Email：jackbradd@guangminfire.cn

Selectable Flow Rates | Pistol Grip Design | Multi-Pattern Spray

Engineered for Precision and Maximum Firefighting Efficiency.

Product Overview

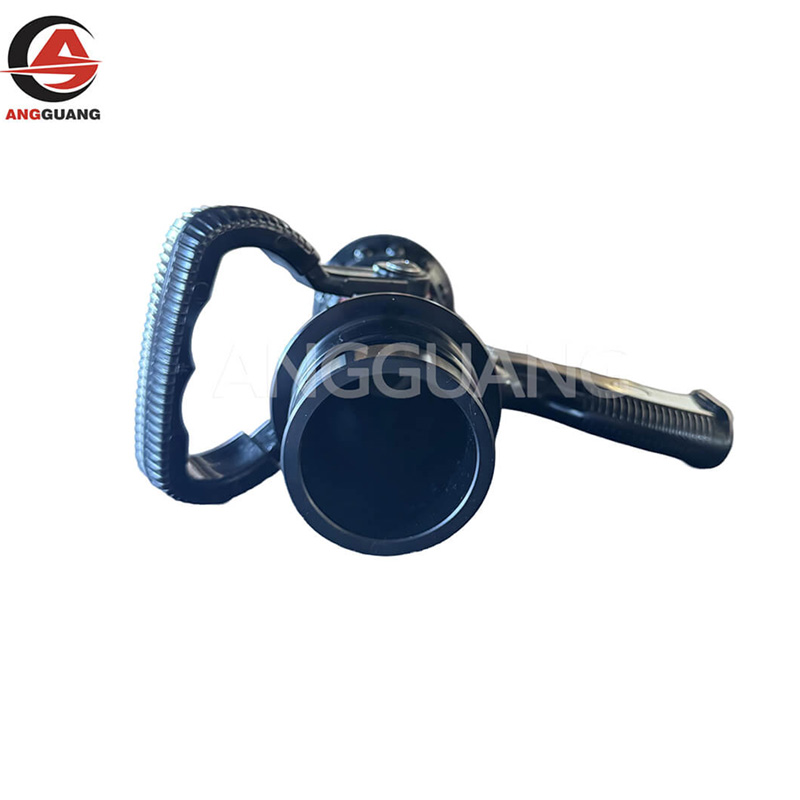

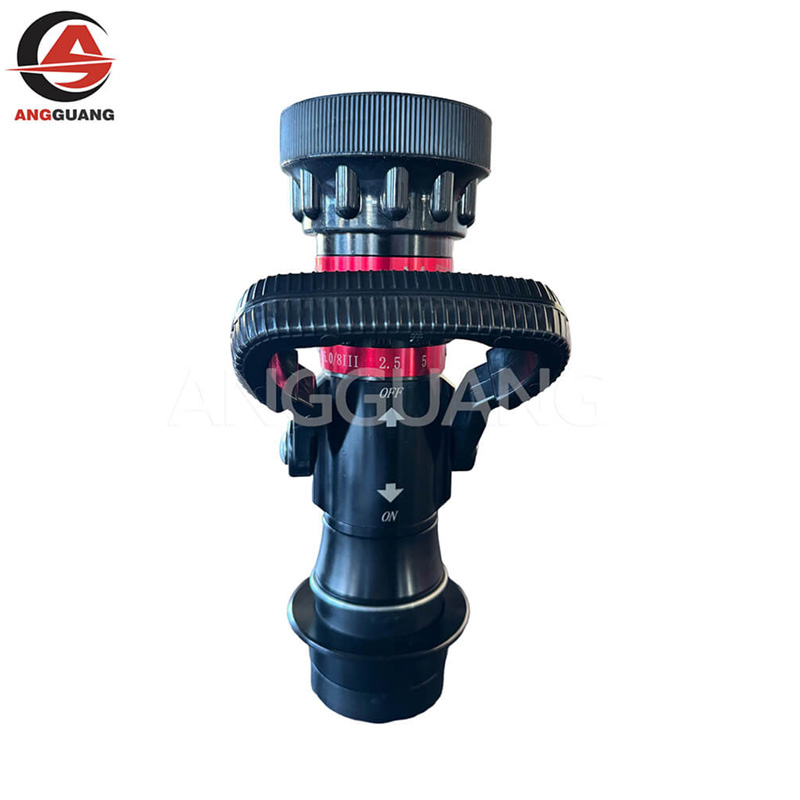

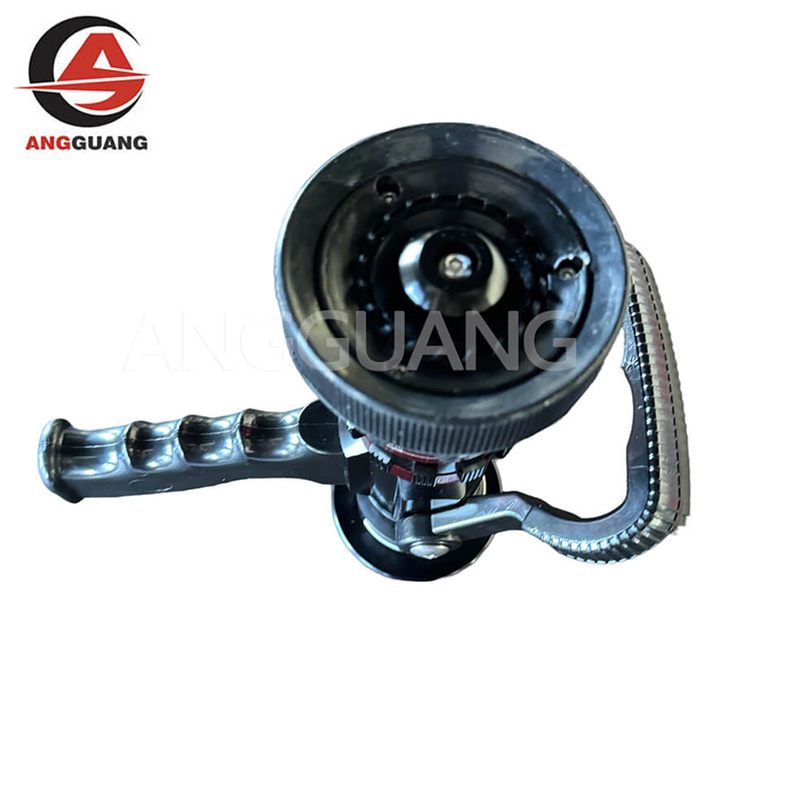

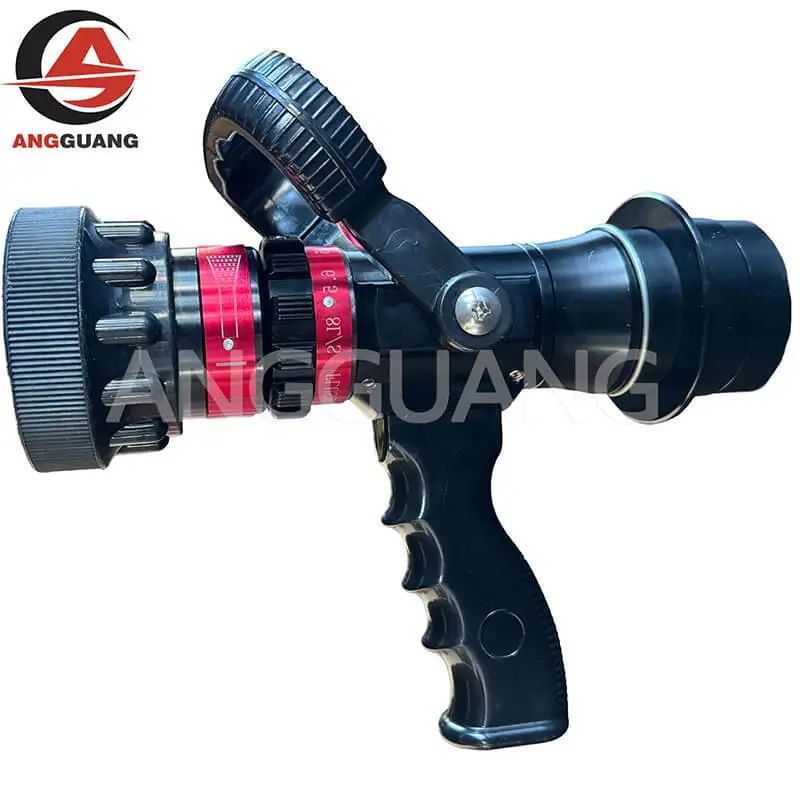

The Selectable Gallonage Fire Nozzle with Pistol Grip is a high-performance firefighting tool designed for tactical versatility. It features a unique flow-adjustment ring that allows firefighters to select between different flow rates (Gallons Per Minute) without shutting down the water supply. The integrated pistol grip provides a secure hold and reduces fatigue during long operations, while the front nozzle head can be rotated to switch seamlessly between a high-impact **straight stream (Jet) and a wide-protective fog pattern (Spray).

Key Features

Selectable Gallonage: Multiple flow rate settings (e.g., 115-230-360-475 LPM) for precise water management.
Ergonomic Pistol Grip: Specifically designed to handle the nozzle's reaction force and provide superior maneuverability.
Shut-off Handle: Heavy-duty ball valve handle for easy "On/Off" control at the nozzle point.
Spinning Teeth: Equipped with rotating teeth to create a fine, wide-angle protective fog shield.
High Durability: Constructed from anodized aluminum alloy with a protective rubber bumper for impact resistance.

Technical Specifications

Parameter	Details
Material	Anodized Aluminum Alloy + Rubber + Stainless Steel
Flow Settings	115 / 230 / 360 / 475 LPM (Customizable)
Inlet Connection	1.5" (40mm) or 2.5" (65mm) Thread / Storz / NH / Machino
Working Pressure	6 Bar (87 PSI) - 16 Bar (232 PSI)
Spray Patterns	Straight Stream, Narrow Fog, Wide Fog
Weight	Approx. 1.8 kg - 2.5 kg

Applications

Structural Firefighting: Primary tool for indoor and residential fire suppression.
Wildland Fires: Efficient water management for outdoor fire control.
Industrial Sites: Used in high-risk zones like chemical plants and fuel depots.
Marine Operations: Saltwater resistant options available for offshore firefighting.

Custom Service: We offer various coupling standards (Storz, NH, Instantaneous), private branding (Laser etching), and customized color coatings for professional fire departments.
