Detailed description:

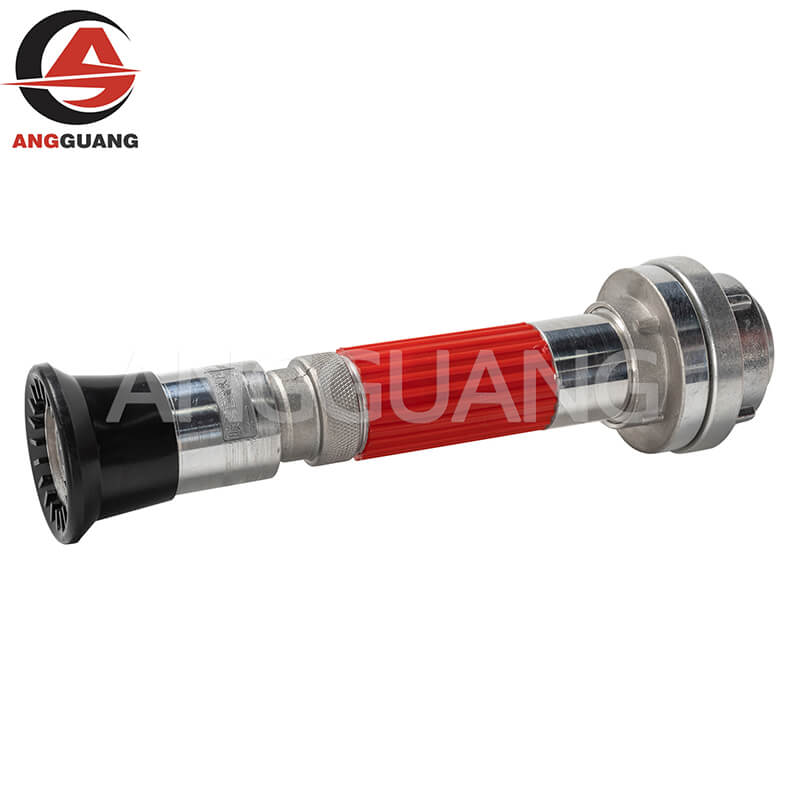

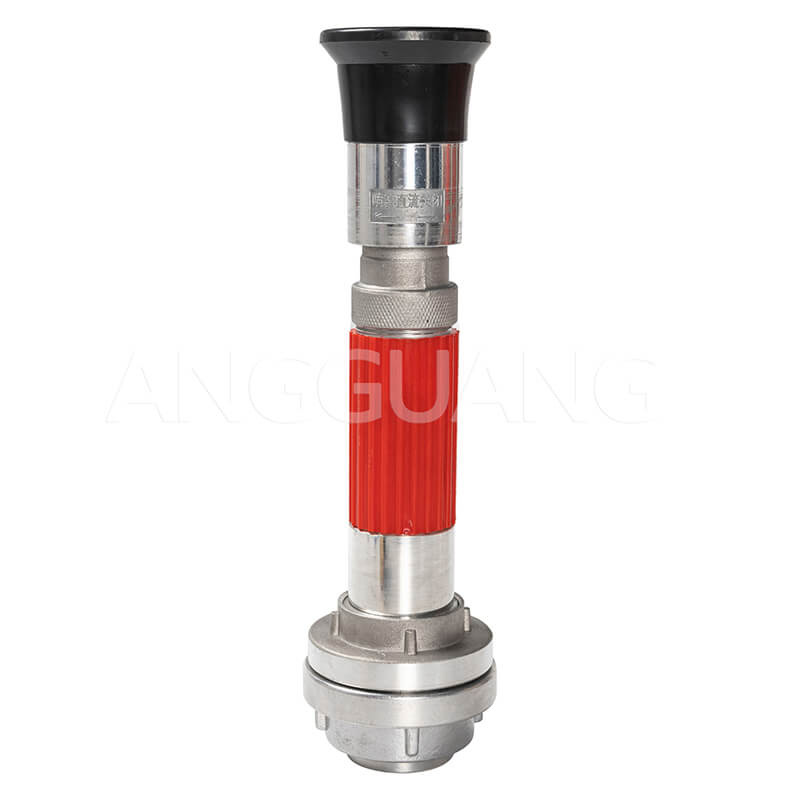

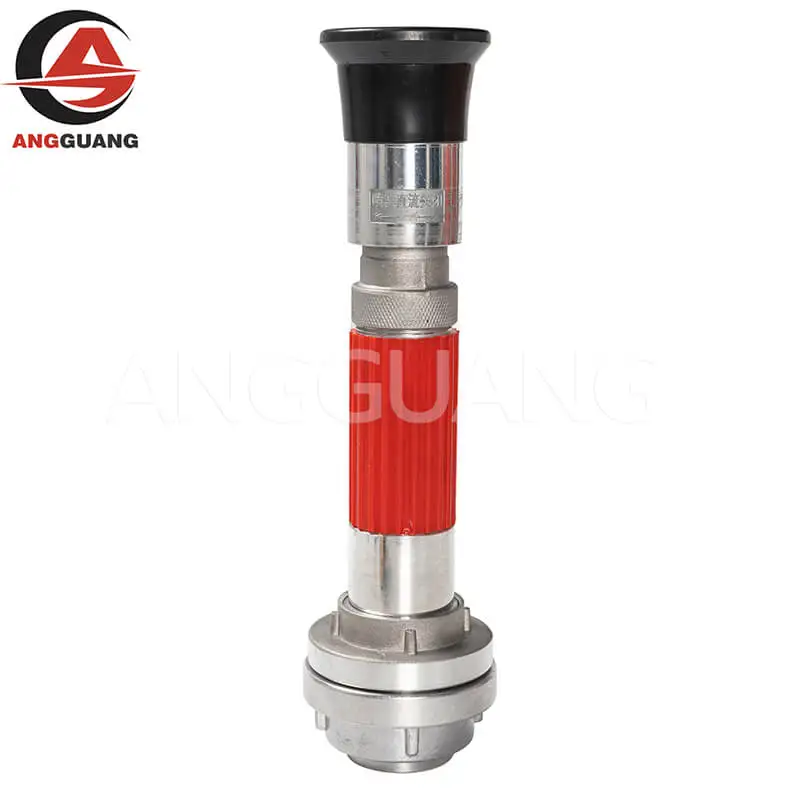

Storz Type Adjustable Spray/Jet Fire Nozzle with Long Branch Pipe

CONTACT US

Storz Type Adjustable Spray/Jet Fire Nozzle Long Branch Pipe Guangmin

Whatsapp：+86 18798746115

Email：jackbradd@guangminfire.cn

Storz Connection | Adjustable Spray & Jet | Heavy Duty Design

Your Trusted Partner for DIN Standard Firefighting Equipment.

Product Overview

The Storz Type Adjustable Spray/Jet Fire Nozzle with a long branch pipe is engineered for professional firefighting operations requiring versatility and long-reach performance. Featuring a classic Storz quick-coupling system (available in C-52 or B-75 sizes), this nozzle allows for rapid deployment. The long branch pipe design provides superior balance and handling, while the adjustable head enables the operator to switch instantly between a high-impact straight stream (Jet) and a wide-angle cooling fog (Spray).

Key Features

Standard Storz Coupling: Easy and fast connection, widely used in European and Middle Eastern markets.
Tri-Mode Operation: Rotate the rubber-protected head for Jet, Spray, or complete Shut-off.
Protective Grip: The center is equipped with a high-visibility red rubber sleeve for a secure, non-slip grip and thermal protection.
Long Reach Performance: The extended branch pipe stabilizes water flow, enhancing the effective range of the straight stream.
Robust Materials: Manufactured from corrosion-resistant aluminum alloy with durable synthetic rubber components.

Technical Specifications

Parameter	Details
Connection Type	Storz C (52mm) / Storz B (75mm) / Storz D
Material	Aluminum Alloy + Rubber Protective Sleeve
Operating Modes	Jet / Spray (Fog) / Shut-off
Working Pressure	1.6 MPa (16 Bar)
Standard	Compliant with DIN 14365 Standards
Total Length	Approx. 400mm - 450mm (Varies by model)

Applications

Professional Fire Brigades: Primary nozzle for structural and industrial firefighting.
Marine & Offshore: Ideal for deck firefighting on ships using Storz-standard systems.
Industrial Complexes: Fire protection in oil refineries, power plants, and chemical factories.
Agricultural & Forestry: High-volume water delivery for rural fire suppression.

Custom Service: We provide OEM branding, customized lengths, and a variety of Storz size options to meet specific regional requirements.
