Detailed description:

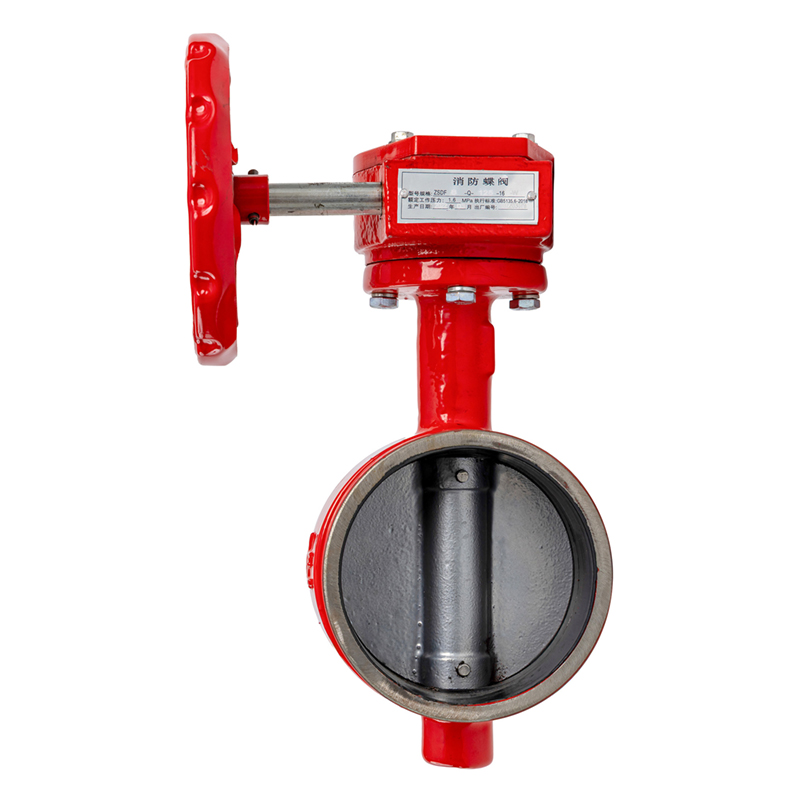

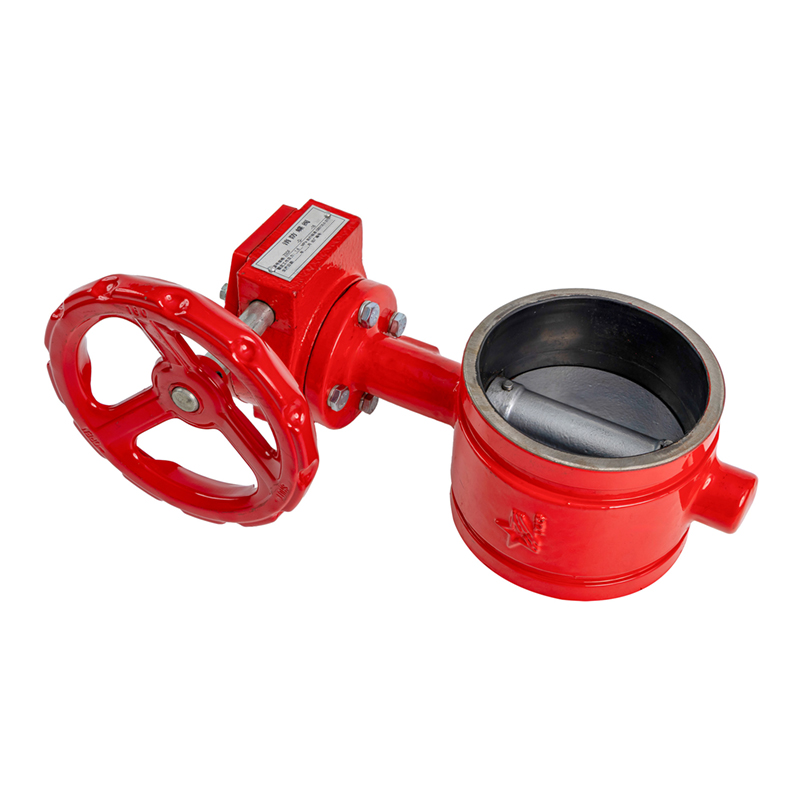

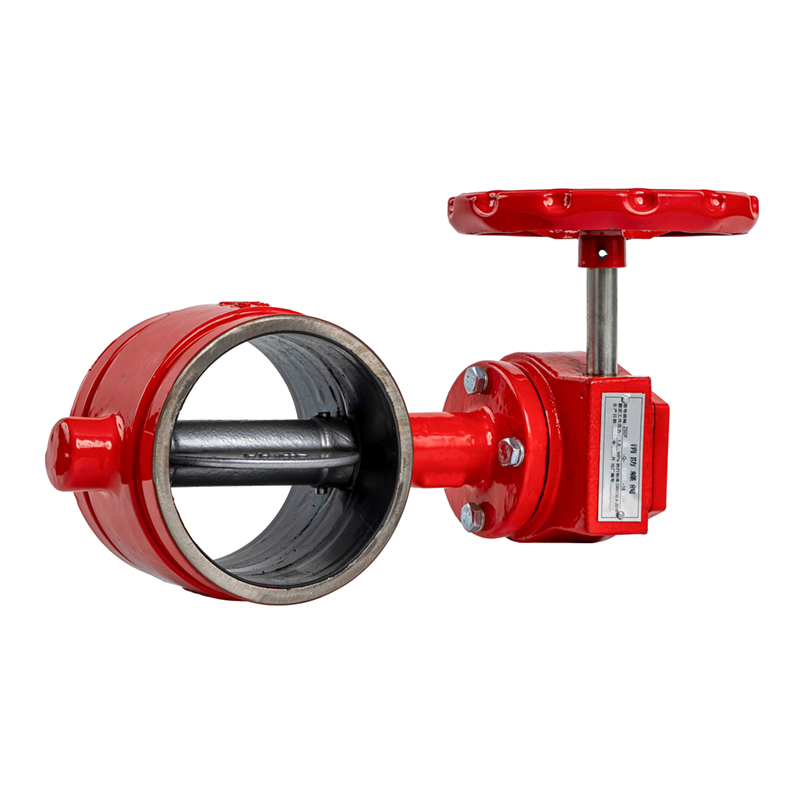

Signal Fire Protection Butterfly Valve (Gear-Operated Wafer Type)

REQUEST TECHNICAL DATA & QUOTE

Main Feature: Dual Integrated Micro-switches for Remote Monitoring

Specializing in High-Performance Fire Safety Valves Since 1995.

Product Overview

The Signal Fire Protection Butterfly Valve is a critical component for automatic sprinkler systems and firefighting pipelines. Engineered for precise control and safety monitoring, it features a specialized gearbox equipped with internal micro-switches that transmit the valve's open or closed status to the fire control panel. The wafer-type design allows for a compact, lightweight installation between standard pipe flanges. Manufactured from high-tensile ductile iron and coated with anti-corrosive fire-red epoxy, this valve ensures long-term operational reliability in high-pressure fire main systems.

Key Technical Advantages

Integrated Signal Monitoring: Built-in signal switch box provides real-time feedback to prevent accidental system shutdown.
Compact Wafer Design: Space-saving installation between flanges, significantly reducing weight and installation time.
Ductile Iron Body: High strength-to-weight ratio and superior impact resistance compared to standard cast iron.

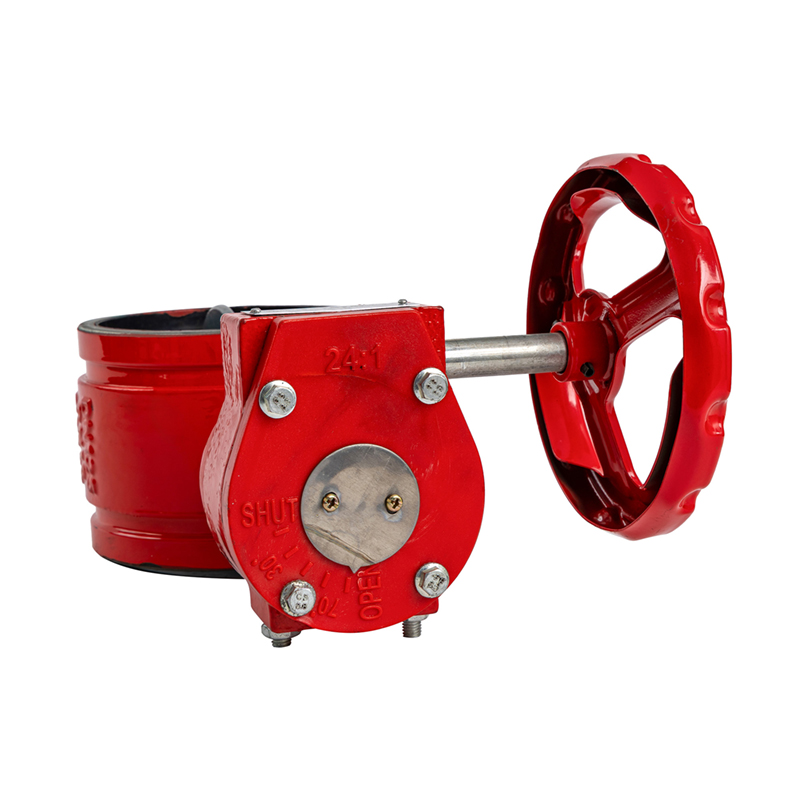

Smooth Operation: High-precision worm gear actuator ensures low torque and smooth manual operation.
Corrosion Protection: Internal and external epoxy powder coating (FBE) protects against scale and corrosion.

Technical Specifications

Parameter	Specification Details
Design Standard	GB5135.6 / ANSI / DIN / BS Compliant
Connection Type	Wafer Type (Sandwich Between Flanges)
Body Material	Ductile Iron (ASTM A536)
Pressure Rating	1.0 / 1.6 / 2.5 MPa (PN10/16/25)
Available Sizes	DN50 to DN300 (2" to 12")
Switch Voltage	24V DC / 250V AC

Primary Applications

Automatic Sprinkler Systems: Installed at the main water supply and zone control stations.
Industrial Fire Mains: Used in refineries, chemical plants, and manufacturing facilities.
High-Rise Commercial: Sectional control valves for office buildings, malls, and hotels.
Pumping Stations: Essential at the discharge side of fire pump sets.

Global Support: We offer grooved-end versions for rapid pipe coupling, customized wiring for specific fire alarm panels, and third-party inspection reports for international projects.
